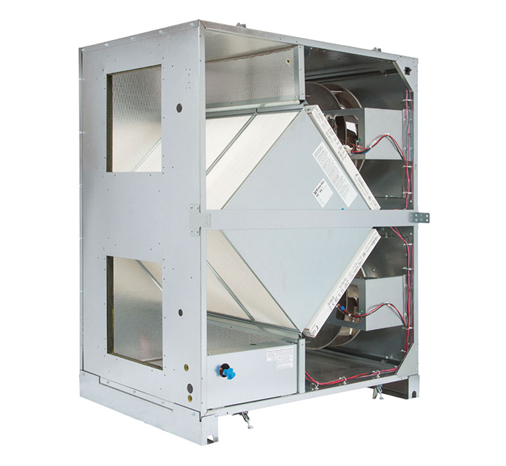

HE1.5XINH

Application Type:Indoor

Ventilation Type:Static plate, heat and humidity transfer

Typical Airflow Range:375-1,575 CFM

AHRI 1060 Certified Core:One L62-G5, One L125-G5

OA Filter(s):Total Qty. 2, MERV 8: 14" x 20" x 2" and 16" x 20" x 2"

RA Filter(s):Total Qty. 2, MERV 8: 14" x 20" x 2" and 16" x 20" x 2"

Unit Dimensions & Weight:48 3/4" L x 34 1/2" W x 53 3/4" H, 337-504 lbs. (varies by option)

Find a Representative

Electrical Service

[15] 208-230V / 1 Phase / 60 HZ

[11] 120V / 1 Phase / 60 HZ

[19] 277V / 1 Phase / 60 HZ

[35] 208-230V / 3 Phase / 60 HZ

[34] 460V / 3 Phase / 60 HZ

Fresh Air Motor

[E] ECM - Direct Drive Motorized Impeller

[S] TEFC - Direct Drive Motorized Impeller (Standard)

Exhaust Air Motor

[S] TEFC - Direct Drive Motorized Impeller (Standard)

[E] ECM - Direct Drive Motorized Impeller

Fan Control

[A] Single Contactor For Common Fan Control (Standard)

[D] Dual Contactors For Independent Blower Controls

[G] Terminal Strip For EC Motors

Disconnect

[N] Non-fused (Standard)

[F] Fused

Control Options

[T] Standard Unit Control Wiring

Integrated Programmable Controls - Enhanced

RenewAire Integrated Programmable Controls | PDF (3MB)

Integrated Programmable Controls Manual (PDF) | PDF (19MB)

Integrated Programmable Controls - Premium

RenewAire Integrated Programmable Controls | PDF (3MB)

Integrated Programmable Controls Manual (PDF) | PDF (19MB)

Economizer/Bypass Damper

No Bypass (Standard)

Bypass

RenewAire Bypass Economizer | PDF (663KB)

Bypass Controls

Dry Bulb

Enthalpic

Isolation Dampers

[D] Motorized Dampers Both Airstreams

[E] Motorized Damper EA Airstream

[F] Motorized Damper FA/OA Airstream

[B] Backdraft Damper Both Airstreams

[R] Backdraft Damper EA Airstream

[S] Backdraft Damper OA Airstream

[T] Motorized Damper OA, Backdraft Damper EA

Filter Type

Merv 8 (Standard)

Wall

[S] Single (Standard)

[D] Double

Paint

[W] White Paint

[C] Custom Paint

Filter Monitor

[F] Filter Monitor Both Airstreams

Dampers

Backdraft Damper, HE1.5IN, P/N 148031 Outside Airstream

HE1.5X Backdraft Damper Kit Manual (PDF) | PDF (1MB)

Backdraft Damper, HE1.5IN, P/N 148032 Exhaust Airstream

HE1.5X Backdraft Damper Kit Manual (PDF) | PDF (1MB)

Controls

Digital Time Clock, SL, EV450, HE, LE, RD, P/N 131300Wall Mount, TC7D-W

Digital Time Clock Manual TC7D (PDF) | PDF (1MB)

Digital Time Clock, SL, EV450, HE, LE, RD, P/N 131301Exterior Enclosure, TC7D-E

Digital Time Clock Manual TC7D (PDF) | PDF (1MB)

CO2 Sensor, SL, EV450, HE, LE, RD, DN P/N 131304Room Mount, CO2-W

CO2 Accessory Control Manual (PDF) | PDF (1MB)

CO2 Sensor, EV450, HE, LE, RD, DN P/N 131305Duct Mount, CO2-D

CO2 Accessory Control Manual (PDF) | PDF (1MB)

IAQ Sensor, SL, EV450, HE, LE, RD, DN P/N 131308Room Mount, IAQ-W

IAQ Wiring Supplement (PDF) | PDF (1MB)

IAQ Sensor, EV450, HE, LE, RD, DN P/N 131307Duct Mount, IAQ-D

IAQ Wiring Supplement (PDF) | PDF (1MB)

Occupancy Sensor, SL, EV450, HE, LE, RD, DN P/N 131302Ceiling Mount, MC-C

Occupancy Sensor Manual (PDF) | PDF (2MB)

Occupancy Sensor, SL, EV450, HE, LE, RD, DN P/N 131303Wall Mount, MC-W

Occupancy Sensor Manual (PDF) | PDF (2MB)

Smoke Detector, EV450, HE, LE, RD, DN P/N 102396Duct Mount, SD-D

Remote Display, EV450, HE, LE, RD, DN with Enhanced or Premium Controls, P/N 131311 Handheld/Wall Mount RD-M

Room Pressure Sensor with Display, EV450, HE, LE, RD, DN with Premium Controls, P/N 131314, RPS-WD

Room Pressure Sensor without Display, EV450, HE, LE, RD, DN with Premium Controls, P/N 131310, RPS-WOD

Duct Static Pressure Sensor with Display, EV450, HE, LE, RD, DN with Premium Controls, P/N 131315, DPS-WD

Duct Static Pressure Sensor without Display, EV450, HE, LE, RD, DN with Premium Controls, P/N 131309, DPS-WOD

Temperature Sensor Kit, EV450, HE, LE, RD, DN with Premium Controls for non-integrated heating, P/N 131318, TS

Potentiometer Speed Control, EV450, HE1X-1.5X, P/N 147050 Remote Installed for ECM, SCECM

Filters

Filter, EV450, HE1.5, RD, HE-2XRTC, P/N 990080 Merv 8 14"x20"x2" Single Filter

Filter, EV450, HE1.5, RD, HE-2XRTC, P/N 990300 Merv 13 14"x20"x2" Single Filter

Filter, HE1.5, HE-4XRTC, P/N 990229 Merv 8 16"x20"x2" Single Filter

Filter, HE1.5, HE-4XRTC, DN2, DN5 P/N 990301Merv 13 16"x20"x2" Single Filter

Heaters & Furnaces

GHIN Indirect Gas-Fired Duct Furnace

Static Gas Furnace CSI | PDF (196KB)

Static Gas Furnace CSI | Word Doc (22KB)

RenewAire Indirect Gas-Fired Furnace | PDF (1MB)

Gas Heater Manual (PDF) | PDF (6MB)

Indirect Gas-Fired Furnace Submittal Indoor (PDF) | PDF (419KB)

GHRT Indirect Gas-Fired Duct Furnace

Static Gas Furnace CSI | PDF (196KB)

Static Gas Furnace CSI | Word Doc (22KB)

RenewAire Indirect Gas-Fired Furnace | PDF (1MB)

Gas Heater Manual (PDF) | PDF (6MB)

Indirect Gas-Fired Furnace Submittal Outdoor (PDF) | PDF (325KB)

EK Series Electric Duct Heaters

EH series heaters are no longer available effectively immediately. All attributes and capacities of EH Heaters will be available with EK series.

Static Electric Duct Heater CSI | PDF (175KB)

Static Electric Duct Heater CSI | Word Doc (23KB)

RenewAire Electric Duct Heater | PDF (6MB)

Electric Duct Heater IOM (PDF) | PDF (2MB)

Electric Duct Heater Submittals EK (PDF) | PDF (220KB)

HE1.5XINH Standard

HE1.5XINH Submittal Standard (PDF)

pdf (263KB)

HE1.5XINH Dimension Drawing (PDF)

pdf (98KB)

HE1.5XINH Dimension Drawing (DWG)

dwg (506KB)

HE1.5XINH Revit (BIM)

rfa (612KB)

HE1.5XINH ECM

HE1.5XINH Submittal ECM (PDF)

pdf (297KB)

HE1.5XINH Submittal ECM Bypass (PDF)

pdf (309KB)

HE1.5XINH Dimension Drawing (PDF)

pdf (98KB)

HE1.5XINH Dimension Drawing (DWG)

dwg (506KB)

HE1.5XINH Revit (BIM)

rfa (612KB)

HE1.5XINH Bypass

HE1.5XINH Submittal Bypass (PDF)

pdf (275KB)

HE1.5XINH Submittal ECM Bypass (PDF)

pdf (309KB)

HE1.5XINH Dimension Drawing Bypass (PDF)

pdf (108KB)

HE1.5XINH Dimension Drawing Bypass (DWG)

dwg (530KB)

HE1.5XINH Bypass Revit (BIM)

rfa (636KB)

HE1.5XINH CSI

HE1.5XHINH | PDF (114KB)

HE1.5XINH | Word Doc (44KB)

EV450 & HE Series Commercial ERV Catalog

pdf (12MB)

RenewAire ERV Guide

pdf (659KB)

RenewAire Integrated Programmable Controls

pdf (3MB)

RenewAire Bypass Economizer

pdf (663KB)

RenewAire Electric Duct Heater

pdf (6MB)

HE1.5XIN IOM (PDF)

pdf (2MB)

EC Motor IOM Supplement (PDF)

pdf (5MB)

Integrated Programmable Controls Manual (PDF)

pdf (19MB)

Bypass IOM Supplement (PDF)

pdf (4MB)

Isolation Damper IOM Supplement (PDF)

pdf (41KB)

Filter Alarm IOM Supplement (PDF)

pdf (70KB)

Occupancy Sensor Manual (PDF)

pdf (2MB)

Electrical Service

[15] 208-230V / 1 Phase / 60 HZ

[11] 120V / 1 Phase / 60 HZ

[19] 277V / 1 Phase / 60 HZ

[35] 208-230V / 3 Phase / 60 HZ

[34] 460V / 3 Phase / 60 HZ

Fresh Air Motor

[E] ECM - Direct Drive Motorized Impeller​

[S] TEFC - Direct Drive Motorized Impeller (Standard)

Exhaust Air Motor

[S] TEFC - Direct Drive Motorized Impeller (Standard)

[E] ECM - Direct Drive Motorized Impeller​

Fan Control

[A] Single Contactor For Common Fan Control (Standard)

[D] Dual Contactors For Independent Blower Controls

[G] Terminal Strip For EC Motors

Disconnect

[N] Non-fused (Standard)

[F] Fused

Control Options

[T] Standard Unit Control Wiring

Integrated Programmable Controls - Enhanced

Integrated Programmable Controls - Premium

Economizer/Bypass Damper

No Bypass (Standard)

Bypass

Bypass Controls

Dry Bulb

Enthalpic

Isolation Dampers

[D] Motorized Dampers Both Airstreams

[E] Motorized Damper EA Airstream

[F] Motorized Damper FA/OA Airstream

[B] Backdraft Damper Both Airstreams

[R] Backdraft Damper EA Airstream

[S] Backdraft Damper OA Airstream

[T] Motorized Damper OA, Backdraft Damper EA​

Filter Type

Merv 8 (Standard)

Wall

[S] Single (Standard)

[D] Double

Paint

[W] White Paint

[C] Custom Paint

Filter Monitor

[F] Filter Monitor Both Airstreams

Dampers

Backdraft Damper, HE1.5IN, P/N 148031 Outside Airstream

Backdraft Damper, HE1.5IN, P/N 148032 Exhaust Airstream

Controls

Digital Time Clock, SL, EV450, HE, LE, RD, P/N 131300Wall Mount, TC7D-W

Digital Time Clock, SL, EV450, HE, LE, RD, P/N 131301Exterior Enclosure, TC7D-E

CO2 Sensor, SL, EV450, HE, LE, RD, DN P/N 131304Room Mount, CO2-W

CO2 Sensor, EV450, HE, LE, RD, DN P/N 131305Duct Mount, CO2-D

IAQ Sensor, SL, EV450, HE, LE, RD, DN P/N 131308Room Mount, IAQ-W

IAQ Sensor, EV450, HE, LE, RD, DN P/N 131307Duct Mount, IAQ-D

Occupancy Sensor, SL, EV450, HE, LE, RD, DN P/N 131302Ceiling Mount, MC-C

Occupancy Sensor, SL, EV450, HE, LE, RD, DN P/N 131303Wall Mount, MC-W

Smoke Detector, EV450, HE, LE, RD, DN P/N 102396Duct Mount, SD-D

Remote Display, EV450, HE, LE, RD, DN with Enhanced or Premium Controls, P/N 131311 Handheld/Wall Mount RD-M

Room Pressure Sensor with Display, EV450, HE, LE, RD, DN with Premium Controls, P/N 131314, RPS-WD

Room Pressure Sensor without Display, EV450, HE, LE, RD, DN with Premium Controls, P/N 131310, RPS-WOD

Duct Static Pressure Sensor with Display, EV450, HE, LE, RD, DN with Premium Controls, P/N 131315, DPS-WD

Duct Static Pressure Sensor without Display, EV450, HE, LE, RD, DN with Premium Controls, P/N 131309, DPS-WOD

Temperature Sensor Kit, EV450, HE, LE, RD, DN with Premium Controls for non-integrated heating, P/N 131318, TS

Potentiometer Speed Control, EV450, HE1X-1.5X, P/N 147050 Remote Installed for ECM, SCECM

Filters

Filter, EV450, HE1.5, RD, HE-2XRTC, P/N 990080 Merv 8 14"x20"x2" Single Filter

Filter, EV450, HE1.5, RD, HE-2XRTC, P/N 990300 Merv 13 14"x20"x2" Single Filter

Filter, HE1.5, HE-4XRTC, P/N 990229 Merv 8 16"x20"x2" Single Filter

Filter, HE1.5, HE-4XRTC, DN2, DN5 P/N 990301Merv 13 16"x20"x2" Single Filter

Heaters & Furnaces

GHIN Indirect Gas-Fired Duct Furnace

GHRT Indirect Gas-Fired Duct Furnace

EK Series Electric Duct Heaters

HE1.5XINH Standard

HE1.5XINH ECM

HE1.5XINH Bypass

[E] ECM - Direct Drive Motorized Impeller

[E] ECM - Direct Drive Motorized Impeller

[T] Motorized Damper OA, Backdraft Damper EA
