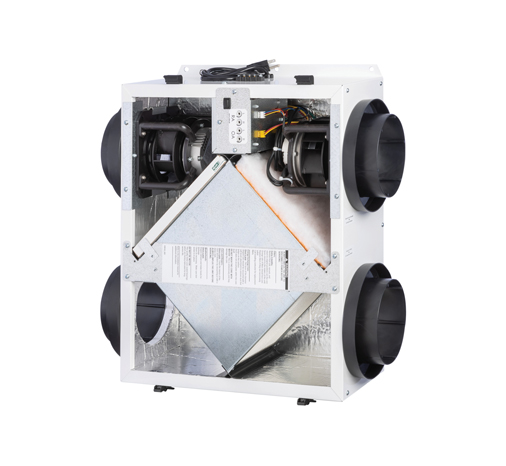

Application Type:Indoor
Ventilation Type:Static plate, heat and humidity transfer
Typical Airflow Range:30-130 CFM
OA Filter(s):Total Qty: 1, Merv 8: spun polyester media, 7 1/2" x 10 1/2" x 1"
RA Filter(s):Total Qty: 1, Merv 8: spun polyester media, 7 1/2" x 10 1/2" x 1"
Dimensions:22 1/2" L x 9 1/2" W x 23 3/4" H
Weight:32 lbs.
Orientation

Electrical Service
120V / 1 Phase / 60 Hz
Line Cord Power Connection
EA/FA Fan Motor
Variable Speed / EC Motorized Impellers
Controls
Dial-A-Flow - Balance and Airflow Adjustment
Boost-mode
Onboard Digital Controller with Independent Variable Speeds
Low-voltage Circuit for Controls
Cross-core Differential Pressure Ports
Filter Type
MERV 8 (Standard)
Wall
[S] Single (Standard)
Paint
White Paint
Controls
Digital Time Clock, SL, EV, EV Premium, HE, LE, RD, P/N 131300
Wall Mount, TC7D-W
Digital Time Clock, SL, EV, EV Premium, HE, LE, RD, P/N 131301
Exterior Enclosure, TC7D-E
Occupancy Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131302
Ceiling Mount, MC-C
Occupancy Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131303
Wall Mount, MC-W
CO2 Sensor, SL, EV Premium, HE, LE, RD, DN, P/N 131304
Wall Mount, CO2-W
CO2 Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131305
Duct Mount, CO2-D
IAQ Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131307
Duct Mount, IAQ-D
IAQ Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131308
Wall Mount, IAQ-W
Percentage Timer Control, SL, EV90-300, EV Premium, P/N 140460
PTL
PTL Control Manual (PDF) | PDF (259KB)
Percentage Timer Control, SL, EV90-300, EV Premium, P/N 140470
With Furnace Interlock, FM
FM Control Manual (PDF) | PDF (206KB)
Push Button Point-of-Use Control, SL, EV90-300, EV Premium, P/N 140480
PBL
PBL Control Manual (PDF) | PDF (277KB)
Push Button Boost Timer, SL, EV Premium, P/N 164010
PBT
PBT Control Manual (PDF) | PDF (289KB)
Heaters & Furnaces
Electric Duct Heater - RH Series (1-4 kW)
Filters
Filters, SL, EV Premium S, P/N 990772
MERV 13, 10 Pack
Filter Set, SL, EV, EV Premium, BR, GR, P/N 990447
MERV 8, 3 Pack
Filter Set, SL, EV, EV Premium, BR, GR, P/N 990076
MERV 8, Box of 10
Filters, SL, EV, EV Premium, BR, GR, P/N 990579
MERV 8, 75 Pack
Filter, SL, EV Premium S, P/N 990661
MERV 13 7-1/4"x10-1/4"x1" Single Filter
Filters, SL, EV Premium S, P/N 990773
MERV 13, 25 Pack
Filters, SL, EV Premium S, P/N 990771
MERV 13, 3 Pack
Dampers
Backdraft Damper, BR, SL, GR, EV90-240, EV Premium, P/N 102400
6", BD6
Backdraft Damper, BR, SL, GR, EV90-300, EV Premium, P/N 102401
8", BD8
Balancing Damper, BR, SL, GR, EV, EV Premium, HE, LE, P/N 131400
4", ABV-4
Balancing Damper, BR, SL, GR, EV, EV Premium, HE, LE, P/N 131401
5", ABV-5
Balancing Damper, BR, SL, GR, EV, EV Premium, HE, LE, P/N 131402
6", ABV-6
Louvered and Hooded Wall Vents
Louvered Wall Vent, SL, EV200-300, EV Premium, P/N 102399
8" Taupe, VT8
Hooded Wall Vent, SL, EV200-300, EV Premium, P/N 102406
8" Galvanized, FA8-G
Hooded Wall Vent, SL, EV200-300, EV Premium, P/N 102409
8" Paintable Galvanneal, FA8-P
Louvered Wall Vent, SL, EV200-300, EV Premium, P/N 102412
8" Round Duct Connection - 12" (W) x 8" (H), VW12 X 8
Louvered Wall Vent, BR, SL, GR, EV90-240, EV Premium, P/N 102404
6" White, VW106
Louvered Wall Vent, BR, SL, GR, EV90-240, EV Premium, P/N 102405
6" Brown, VB106
Louvered Wall Vent, BR, SL, GR, EV90-240, EV Premium, P/N 102469
6" White, 6 Qty., VW106-6
Louvered Wall Vent, BR, SL, GR, EV90-240, EV Premium, P/N 102470
6" Brown, 6 Qty., VB106-6
EV Premium S/SH, EV Premium M/MH & EV Premium L/LH, X/XH CSI
EVPremiumSMLX-CSI2024 | PDF (225KB)
EVPremiumSMLX-CSI2024 | Word Doc (33KB)
Electric Duct Heater CSI
